XFlows API

1. Overview

What is XFlows?

XFlows is Wanchain’s canonical cross-chain swap platform. It enables decentralized native-to-native asset swaps across multiple EVM and non-EVM networks.

Core Technical Features

Native-to-Native Transfers

XFlows' standout feature is its ability to facilitate true native-to-native cross-chain asset conversions. This means users can move assets between different blockchains while maintaining their native properties, eliminating the need for wrapped tokens or other intermediary forms.

Decentralized Liquidity Pool Mechanism

The protocol leverages decentralized liquidity pools to provide liquidity support for cross-chain transfers. This design eliminates dependence on centralized exchanges, enhancing both security and decentralization of the system.

Technical Advantages

Non-Custodial Nature

XFlows provides easy, non-custodial transfers, ensuring users maintain complete control over their assets throughout the entire cross-chain process without needing to custody assets with third parties.

Cross-Chain Bridge Infrastructure

The protocol leverages Wanchain's powerful cross-chain bridge technology to provide users with secure and efficient cross-chain experiences. As the world's original decentralized blockchain interoperability solution, Wanchain's technical foundation provides reliable support for XFlows.

Practical Use Cases

XFlows is particularly suitable for users and developers who need to frequently move native assets between multiple blockchain networks. Through this protocol, users can:

  • Achieve fast, cost-effective cross-chain asset swaps

  • Maintain native asset properties

  • Avoid complex wrapping and unwrapping processes

  • Enjoy decentralized security guarantees

Market Impact and Innovation

XFlows represents a significant innovation in Wanchain's cross-chain technology portfolio, contributing importantly to the development of Web3 ecosystem interoperability. The protocol addresses the growing need for seamless asset movement across different blockchain networks while maintaining security and decentralization principles.

The launch of XFlows demonstrates Wanchain's commitment to building comprehensive cross-chain infrastructure that empowers developers to build the future of Web3 applications with enhanced interoperability capabilities.

Foundational Technology

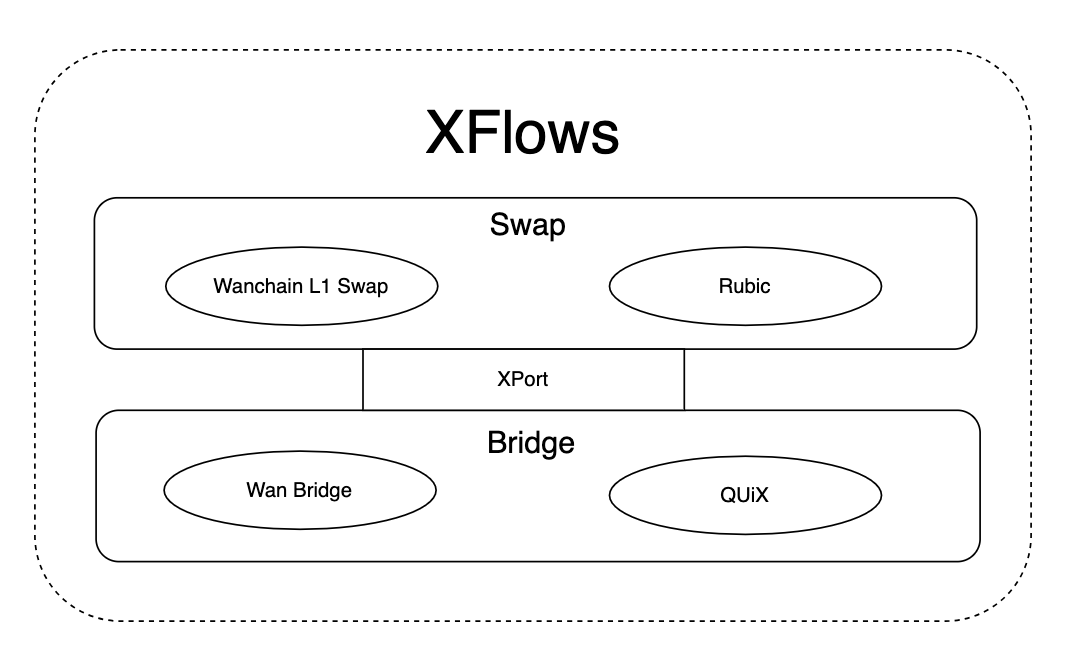

XFlows is built using multiple decentralised cross-chain technologies. It also aggregates select existing cross-chain products. As shown in the figure below, XFlows leverages WanBridge, Wanchain’s decentralised, direct, non-custodial value-transfer bridge, and XPort, Wanchain’s cross-chain data transfer protocol, amongst others.

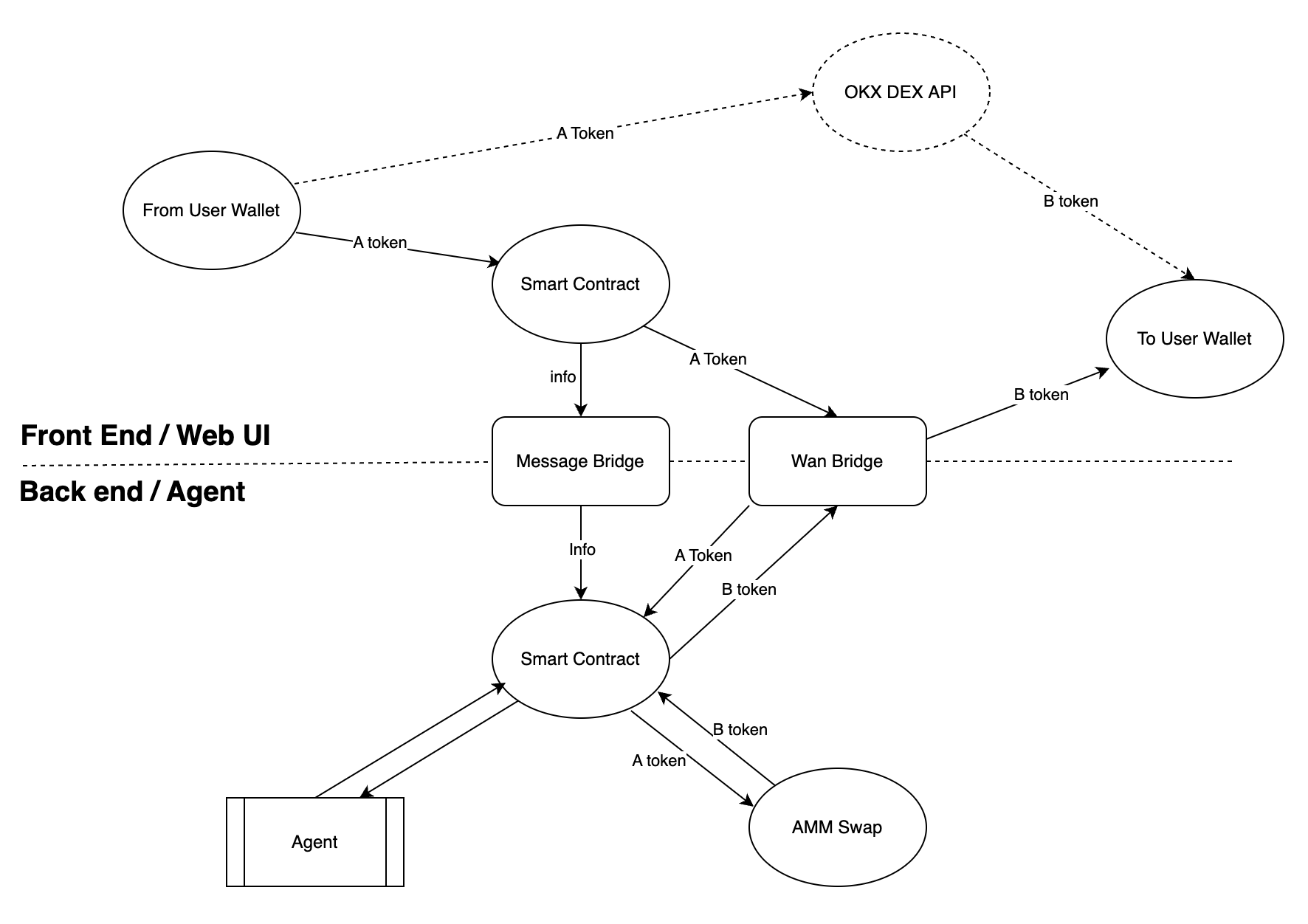

Cross-chain Swap Working Principle:

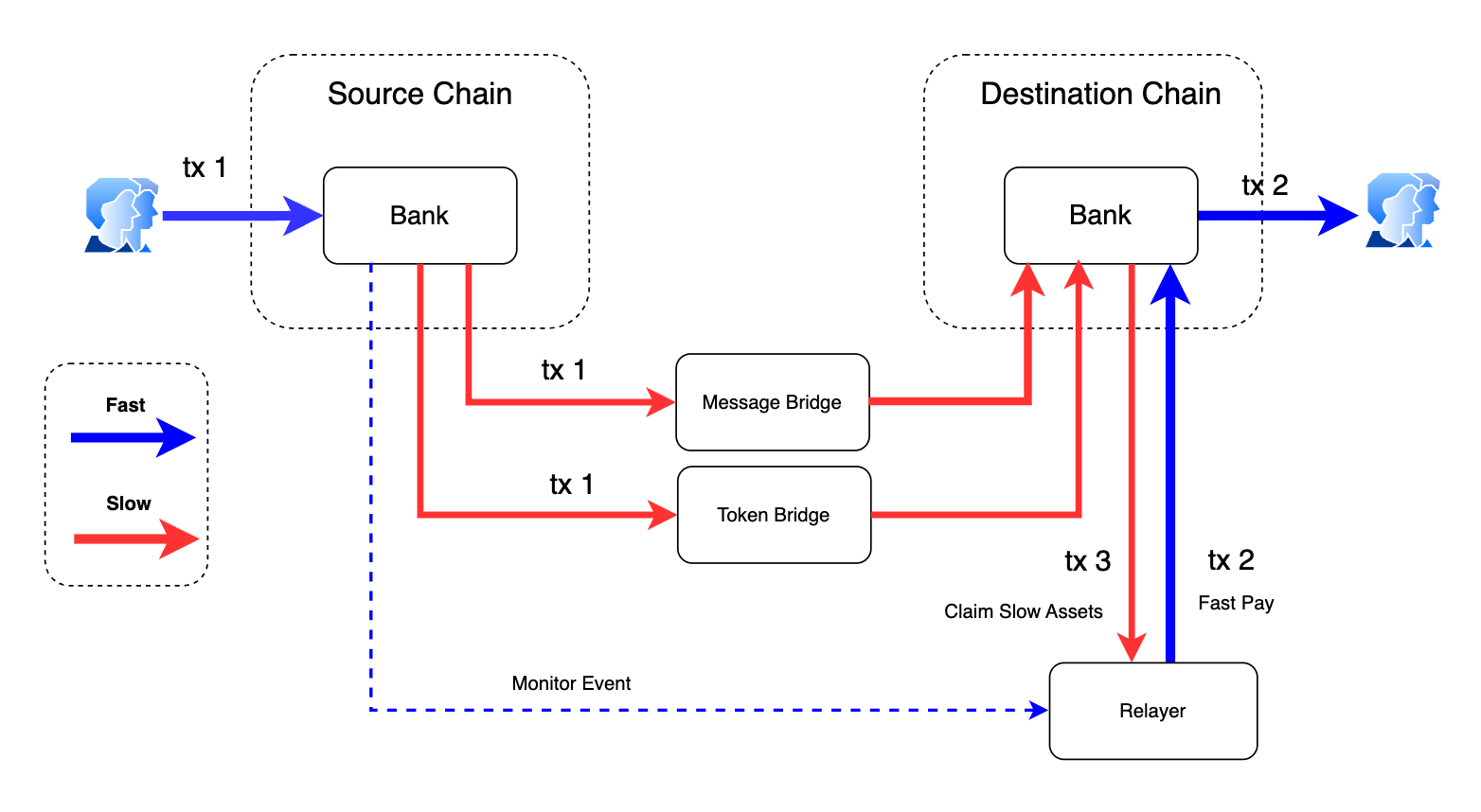

QUiX Working Principle:

This document describes the interfaces and methods for accessing and using XFlows products through API-based integration.

XFlows supports six working modes:

  1. A standard cross-chain bridge transaction to the target chain, using WanBridge;

  2. A rapid cross-chain bridge transaction to the target chain, using QUiX;

  3. A standard cross-chain bridge transaction to the target chain, followed by a swap on the target chain;

  4. A standard cross-chain bridge transaction an intermediary chain (the Wanchain L1 blockchain), followed by a swap on the intermediary chain, followed by a standard cross-chain bridge transaction to the target chain;

  5. A standard DEX swap on the Wanchain L1 blockchain or on other chains, using select 3rd party DEX aggregators;

  6. A standard DEX swap on the Wanchain L1 blockchain, followed by a standard cross-chain bridge transaction to the target chain.

2. Quick Start

XFlows Cross-Chain Integration Process:

  1. Get Cross-Chain Asset Quote Information

  2. Build Cross-Chain Transaction Data

    • API Endpoint: https://xflows.wanchain.org/api/v3/buildTx

    • Purpose: Generate ready-to-use cross-chain swap transaction data based on user-selected cross-chain direction and parameters.

    • Usage: The returned data can be directly passed to the user's wallet for signing and execution.

  3. Query Cross-Chain Transaction Status

  4. Parameter Acquisition Methods for APIs

Parameter
Description

fromChainId

Source chain ID, obtain the corresponding ChainID through API https://xflows.wanchain.org/api/v3/supported/chains (e.g., 1: Ethereum)

toChainId

Target chain ID, same acquisition method as fromChainId (e.g., 56: BNB Smart Chain)

fromTokenAddress

Source token contract address (e.g., 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2). Obtain TokenAddress through API https://xflows.wanchain.org/api/v3/supported/tokens. Note: TokenAddress is the WanBridge-encoded tokenContractAddress, not the asciiTokenAddress

toTokenAddress

Target token contract address (e.g., 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2). Same acquisition method as fromTokenAddress

fromAddress

Source chain wallet address, must be a valid user address that conforms to the corresponding chain's address format

toAddress

Target chain wallet address, same requirements as source chain

bridge

Optional, specify a particular Bridge to use, default value is wanbridge, optional values include wanbridge or quix, obtain supported Bridges through API https://xflows.wanchain.org/api/v3/supported/bridges

dex

Optional, specify a particular DEX to use, e.g., "wanchain" or "rubic", automatically selected by default, obtain supported Dex through API https://xflows.wanchain.org/api/v3/supported/dexes

XFlows API Usage Demo: https://github.com/wandevs/xflows-api-demo

3. Getting Supported Information

3.1 Getting Supported Chains

Get the information of the chain that supports cross-chain exchange, and return the target chain that supports cross-in by request.

Request address

GET https://xflows.wanchain.org/api/v3/supported/chains

Request Parameters

Parameter
type
Required
Description

chainId

String

No

The unique identifier of the chain. Passing null returns all supported chains by default. Pass the id of the specified chain to return the information of the corresponding chain. e.g. 1: Ethereum.

id

String

No

Random number to identify the order of the request.

quix

Boolean

No

default is false, if pass true, then only return the quix supported chains.

Response Parameter

Parameter
Type of parameter
Descripción

chainId

String

Unique identifier of the chain. (e.g. 1: Ethereum)

chainName

String

The name of the chain (e.g. Optimism ).

String chainName

String

Logo icon of the chain

symbol

String

Native coin symbol of the chain (e.g. ETH ).

decimals

Number

Native coin decimals of the chain (e.g. 18 )

chainType

String

chainType Tag for Wan Bridge

Example Request.

GET https://xflows.wanchain.org/api/v3/supported/chains

Example Response.

{
  "success": true,
  "data": [
    {
      "chainId": 1,
      "chainName": "Ethereum",
      "logo": "https://xflows.wanchain.org/Chain/Ethereum.png",
      "symbol": "ETH",
      "chainType": "ETH"
    },
    {
      "chainId": 10,
      "chainName": "Optimism",
      "logo": "https://xflows.wanchain.org/Chain/Optimism.png",
      "symbol": "ETH",
      "chainType": "OETH"
    },
    ...
  ]
}

3.2 Get list of Tokens

Get the list of Tokens supported by XFlows.

Request address

GET https://xflows.wanchain.org/api/v3/supported/tokens

Request Parameters

Parameters
Type of request
Required
Descripción

chainId

String

No

(e.g. 1: Ethereum), if not fill this value, it will return all supported chain’s token list.

quix

Boolean

No

default is false, if pass true, then only return the quix supported chains.

Response Parameters

Parameters
Type
Description

chainId

Number

The ID of the chain used for the API request.

decimals

String

Currency precision (e.g.: 18 )

tokenContractAddress

String

The address of the token contract (e.g.: 0x382bb369d343125bfb2117af9c149795c6c65c50 )

tokenLogoUrl

String

Coin Logo (e.g. https://xxxx/xxx.png)

tokenName

String

Full name of the token (e.g.: Tether )

tokenSymbol

String

Short name of the currency (e.g. USDT )

asciiTokenAddress

String

Only used for non-EVM address friendly display, no API input needed.

wanBridgeOnly

Bool

default: undefined; true: Only support cross-chain, not cross-chain Swap.

Example Request #1.

GET https://xflows.wanchain.org/api/v3/supported/tokens?chainId=10

Example Response #1.

{
  "success": true,
  "data": [
    {
      "decimals": "6",
      "tokenContractAddress": "0x94b008aA00579c1307B0EF2c499aD98a8ce58e58",
      "tokenLogoUrl": "https://xflows.wanchain.org/Token/USDT.png",
      "tokenName": "Tether USD",
      "tokenSymbol": "USDT",
      "asciiTokenAddress": "0x94b008aA00579c1307B0EF2c499aD98a8ce58e58"
    },
    {
      "decimals": "6",
      "tokenContractAddress": "0x0b2c639c533813f4aa9d7837caf62653d097ff85",
      "tokenLogoUrl": "https://xflows.wanchain.org/Token/USDC.png",
      "tokenName": "usdc",
      "tokenSymbol": "USDC",
      "asciiTokenAddress": "0x0b2c639c533813f4aa9d7837caf62653d097ff85"
    },
    {
      "decimals": "18",
      "tokenContractAddress": "0x0000000000000000000000000000000000000000",
      "tokenLogoUrl": "https://xflows.wanchain.org/Token/ETH.png",
      "tokenName": "ETH",
      "tokenSymbol": "ETH",
      "asciiTokenAddress": "0x0000000000000000000000000000000000000000"
    },
    {
      "decimals": "8",
      "tokenContractAddress": "0x68f180fcCe6836688e9084f035309E29Bf0A2095",
      "tokenLogoUrl": "https://xflows.wanchain.org/Token/WBTC.png",
      "tokenName": "Wrapped BTC",
      "tokenSymbol": "WBTC",
      "asciiTokenAddress": "0x68f180fcCe6836688e9084f035309E29Bf0A2095"
    }
  ]
}

Example Request #2.

GET https://xflows.wanchain.org/api/v3/supported/tokens

Example Response #2.

{
  "success": true,
  "data": [
    {
      "chainId": 1,
      "tokens": [
        {
          "decimals": "6",
          "tokenContractAddress": "0xdac17f958d2ee523a2206206994597c13d831ec7",
          "tokenLogoUrl": "https://xflows.wanchain.org/Token/USDT.png",
          "tokenName": "Tether",
          "tokenSymbol": "USDT",
          "asciiTokenAddress": "0xdac17f958d2ee523a2206206994597c13d831ec7"
        },
        {
          "decimals": "6",
          "tokenContractAddress": "0xa0b86991c6218b36c1d19d4a2e9eb0ce3606eb48",
          "tokenLogoUrl": "https://xflows.wanchain.org/Token/USDC.png",
          "tokenName": "USDC",
          "tokenSymbol": "USDC",
          "asciiTokenAddress": "0xa0b86991c6218b36c1d19d4a2e9eb0ce3606eb48"
        },
        ...

3.3 Get a list of pairs that are only bridged via wan bridge

Get a list of pairs that support cross-chaining (no swapping) directly via XFlows only.

The request address is

GET https://xflows.wanchain.org/api/v3/supported/pairs

Request Parameters

Parameters
Type
Required
Description

fromChainId

String

Yes

Chain ID (e.g. 1: Ethereum)

toChainId

String

No

Chain ID (e.g. 56: BSC)

Response Parameters

Parameters
type
Descripción

fromChainId

String

Source chain ID (e.g. 1: Ethereum, more can be obtained using the API)

toChainId

String

Destination chain ID (e.g. 1: Ethereum, more can be obtained using API)

fromTokenAddress

String

Address of the cryptocurrency contract (e.g. 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2 )

toTokenAddress

String

Target currency contract address (e.g. 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2 )

fromTokenSymbol

String

Short name of the source token (e.g. USDC )

toTokenSymbol

String

Short name of the target token (e.g. USDC )

tokenPairId

tokenPairId

Token Pair ID of the WanBridge cross-chain.

symbol

String

Generic Symbol, Ancestor Coin Symbol

Example Request.

GET https://xflows.wanchain.org/api/v3/supported/pairs?fromChainId=56

Example Response.

{
  "success": true,
  "data": [
    {
      "fromChainId": "56",
      "toChainId": "888",
      "fromTokenAddress": "0x55d398326f99059ff775485246999027b3197955",
      "toTokenAddress": "0x11e77e27af5539872efed10abaa0b408cfd9fbbd",
      "fromTokenSymbol": "USDT",
      "toTokenSymbol": "wanUSDT",
      "tokenPairId": "184",
      "symbol": "USDT"
    },
    {
      "fromChainId": "56",
      "toChainId": "1",
      "fromTokenAddress": "0x55d398326f99059ff775485246999027b3197955",
      "toTokenAddress": "0xdac17f958d2ee523a2206206994597c13d831ec7",
      "fromTokenSymbol": "USDT",
      "toTokenSymbol": "USDT",
      "tokenPairId": "189",
      "symbol": "USDT"
    },
    {
      "fromChainId": "56",
      "toChainId": "137",
      "fromTokenAddress": "0x55d398326f99059ff775485246999027b3197955",
      "toTokenAddress": "0xc2132d05d31c914a87c6611c10748aeb04b58e8f",
      "fromTokenSymbol": "USDT",
      "toTokenSymbol": "USDT0",
      "tokenPairId": "200",
      "symbol": "USDT"
    },
    ...
  ]
}

3.4 Supported Bridges

Get the list of bridges supported by the XFlows API to perform cross-chain transactions.

Request Address

GET https://xflows.wanchain.org/api/v3/supported/bridges

Request Parameters

None.

Response Parameters

Parameter
type
Description

key

String

bridge key

String

String

bridge name

Example Request.

GET https://xflows.wanchain.org/api/v3/supported/bridges

Example Response.

{
  "success": true,
  "data": [
    {
      "key": "wanbridge",
      "name": "WanBridge"
    },
    {
      "key": "quix",
      "name": "QUiX"
    }
  ]
}

3.5 Supported DEX

Get the list of supported DEXs for the current XFlows API execution transaction.

Request Address

GET https://xflows.wanchain.org/api/v3/supported/dexes

Request Parameters

None.

Response Parameters

Parameter
type
Description

key

String

dex key

dex name

name

dex name

Example Request.

GET https://xflows.wanchain.org/api/v3/supported/dexes

Example Response.

{
  "success": true,
  "data": [
    {
      "key": "wanchain",
      "name": "Wanchain L1 Swap"
    },
    {
      "key": "rubic",
      "name": "Rubic"
    }
  ]
}

4. Query the best quote

Get the quote and fee information for a specified route.

4.1 Interface

Request Address

POST https://xflows.wanchain.org/api/v3/quote

Request Parameters

Parameters
Type
Required
Description

id

String

No

Random number to be returned with the return value to identify the order of the request.

fromChainId

Number

Yes

ID of the source chain (e.g. 1: Ethereum, more can be retrieved using the API).

toChainId

Number

Yes

Destination Chain ID (e.g. 56: BNB Smart Chain, more can be obtained using API)

fromTokenAddress

String

Yes

The address of the requesting currency contract (e.g. 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2 )

toTokenAddress

String

Yes

Target currency contract address (e.g. 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2 )

fromAddress

String

Yes

Source chain wallet address

toAddress

String

Yes

Destination chain wallet address

fromAmount

String

Yes

fromAmount, e.g., "123.45"

bridge

String

No

Optional, specify a bridge to use, e.g. "wanbridge" or "quix".

dex

No

No

Optional, specify a DEX to be used, e.g. "wanchain" or "rubic".

slippage

Number

No

Optional, the maximum slippage allowed, default value is 0.01 (represents 1%)

Response Parameter

Parameter
type
Required
Descripción

id

String

No

Random number, same as input, used to identify the order of request.

amountOut

String

Yes

The estimated number of tokens to be received. For example, "122.45".

amountOutRaw

String

Yes

The estimated amount of toToken received. The amount should include precision, e.g. 0.001 DAI returns: "1000000000000000".

slippage

Number

Yes

Same as the input value.

amountOutMin

String

Yes

The minimum amount of money that can be received after a slippage. For example, "120.45"

amountOutMinRaw

String

Yes

The minimum amount of money that can be received after a slippage. The amount needs to include precision, e.g. 0.001 DAI returns: "1000000000000000".

priceImpact

Number

Yes

priceImpact, as a percentage, returns -1.3 for -1.3%

approvalAddress

String

No

The source chain needs to perform approval authorization for this address, if it is empty, no approval is needed.

workMode

Number

Yes

Return Value:

  1. directly cross the chain, go to wan-bridge;

  2. directly cross the chain, go to quix;

  3. cross the chain first, then do Swap on the target chain (e.g. cross to Wanchain);

  4. cross the chain to Wanchain first, do Swap on Wanchain, then cross the chain to the target chain;

  5. Swap only, e.g. do Swap on Wanchain. Swap only, e.g. Swap on Wanchain, or Swap on other chains based on Rubic (not supported by OKX or 1inch for now);

  6. Swap first and then cross chain, e.g. Swap from Wanchain and cross out to other chains; (not supported by OKX or 1inch for now) | | bridge | String | No | Optional, specify the use of a certain Bridge, for example: "wanbridge" or "quix", if not fill in the default is wanbridge. | | dex | String | No | Use dex: wanchain, rubic | | error | String | No | If an error is returned, this field returns the error message. | | nativeFees | [] | No | Stores information about the fees charged in Native Coin. | | nativeFeeAmount | String | No | The total amount of Native Coin Fees that need to be paid in the source chain, e.g. networkFee for Wan Bridge, message fee for XPort etc. The amount should include precision, e.g. 0.001 ETH returns: "1000000000000000". | | nativeFeeSymbol | String | No | Example: ETH | | nativeFeeDecimals | Number | No | Example: 18 | | tokenFees | [] | No | Stores information about the fees charged in token. | | tokenFeeAmount | String | No | e.g. Quantity needs to include precision, e.g. 0.001 DAI returns: "1000000000000000". | | tokenFeeDecimals | Number | No | e.g. 18 | | tokenFeeContract | String | No | Example: 0xc02aaaa39b223fe8d0a0e5c4f27ead9083c756cc2 | | tokenFeeSymbol | String | No | e.g. USDT | | extraData | {} | No | Additional details. | | |- directPair | {} | No | If workMode is 1: cross-chain tokenPair information. | | |- quotaAndFee | {} | No | If workMode is 1: information about the remaining available cross-chain credit and common cross-chain fee rules for the current direction. | | |- minQuota | String | No | If workMode is 1: the minimum amount of cross-chain money. The amount should include precision, e.g. 0.001 ETH Return: "1000000000000000". | | |- maxQuota | String | No | If workMode is 1: the current maximum available cross-chain amount. Quantity needs to include precision, e.g. 0.001 USDT returns: "1000". | | |- networkFee | {} | No | extra info about native fee. | | |- serviceFee | {} | No | extra info about token fee. | | |- quix | {} | No | If workMode is 2: additional reference information for quix. | | |- dex | No {} | No | Additional reference information for dex. | | |- priceImpact | Number | No | The price impact of the dex. | | |- path | [No] | No | The swap path and fee of the dex. |

4.2 Request Examples

1) Example Request: (WorkMode 1)

POST https://xflows.wanchain.org/api/v3/quote
BODY
{
  "fromChainId": 43114,
  "toChainId": 56,
  "fromTokenAddress": "0x9702230a8ea53601f5cd2dc00fdbc13d4df4a8c7",
  "toTokenAddress": "0x55d398326f99059ff775485246999027b3197955",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "10"
}

Example Response: (WorkMode 1)

{
  "success": true,
  "data": {
    "amountOut": "9.8",
    "amountOutRaw": "9800000000000000000",
    "slippage": 0.01,
    "amountOutMin": "9.8",
    "amountOutMinRaw": "9800000000000000000",
    "approvalAddress": "0x88888dd82A91f0406ED42BF750bAF881e64894F6",
    "priceImpact": 0,
    "workMode": 1,
    "bridge": "wanbridge",
    "nativeFees": [
      {
        "nativeFeeAmount": "6500000000000000",
        "nativeFeeSymbol": "AVAX",
        "nativeFeeDecimals": 18
      }
    ],
    "tokenFees": [
      {
        "tokenFeeAmount": "200000",
        "tokenFeeSymbol": "USDT",
        "tokenFeeDecimals": 18,
        "tokenFeeContract": "0x55d398326f99059ff775485246999027b3197955"
      }
    ],
    "extraData": {
      "directPair": {
        "fromChainId": "43114",
        "toChainId": "56",
        "fromTokenAddress": "0x9702230a8ea53601f5cd2dc00fdbc13d4df4a8c7",
        "toTokenAddress": "0x55d398326f99059ff775485246999027b3197955",
        "fromTokenSymbol": "USDt",
        "toTokenSymbol": "USDT",
        "tokenPairId": "235",
        "symbol": "USDT"
      },
      "quotaAndFee": {
        "symbol": "USDT",
        "minQuota": "400000",
        "maxQuota": "61318064549",
        "networkFee": {
          "value": "6500000000000000",
          "isPercent": false
        },
        "operationFee": {
          "value": "0.002",
          "isPercent": true,
          "minFeeLimit": "200000",
          "maxFeeLimit": "100000000"
        }
      }
    }
  }
}

2) Example Request: (WorkMode 2)

POST https://xflows.wanchain.org/api/v3/quote
BODY
{
  "fromChainId": 10,
  "toChainId": 56,
  "fromTokenAddress": "0x94b008aA00579c1307B0EF2c499aD98a8ce58e58",
  "toTokenAddress": "0x55d398326f99059ff775485246999027b3197955",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "10",
  "bridge": "quix"
}

Example Response: (WorkMode 2)

{
  "success": true,
  "data": {
    "amountOut": "8",
    "amountOutRaw": "8000000000000000000",
    "slippage": 0.01,
    "amountOutMin": "8",
    "amountOutMinRaw": "8000000000000000000",
    "approvalAddress": "0x4bBcA1e55E99fF75a5F35152BAFE110F15123EA3",
    "priceImpact": 0,
    "workMode": 2,
    "bridge": "quix",
    "nativeFees": [
      {
        "nativeFeeAmount": "64000000000000",
        "nativeFeeSymbol": "ETH",
        "nativeFeeDecimals": 18
      }
    ],
    "tokenFees": [
      {
        "tokenFeeAmount": "2000000000000000000",
        "tokenFeeSymbol": "USDT",
        "tokenFeeDecimals": 18,
        "tokenFeeContract": "0x55d398326f99059ff775485246999027b3197955"
      }
    ],
    "extraData": {
      "quix": {
        "outAmount": "8",
        "fee": "2",
        "networkFee": "0.000064",
        "operationFee": "0.2",
        "walletChainId": 10,
        "intentInfo": {
          "intentType": 0,
          "nonce": "0",
          "fromChainId": "2147484262",
          "toChainId": "2147484362",
          "from": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "to": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "fromToken": "0x94b008aA00579c1307B0EF2c499aD98a8ce58e58",
          "fromAmount": "10000000",
          "toToken": "0x55d398326f99059ff775485246999027b3197955",
          "toAmount": "8000000000000000000",
          "relayer": "0x25309635Fd36CF2A85712B5be4f38Fa887e002CC",
          "deadline": "1756978402",
          "extraData": "0x000000000000000000000000000000000000000000000041726965735f303537000000000000000000000000000000000000000000000000000000000000017300000000000000000000000000000000000000000000000088009813ced40000"
        },
        "intentId": "0xf173c471c3ece5cbd8b925fe85fc39b8ee9623b74e59cea464f6dc27305714c2",
        "signature": "0x4da7b7e862169d100739dd047732b4c8f83cc9aabe0981e77ab38d6c4c6da80f2cb895262fd04f77471659174990f3ccbc05bffbd74887a029c1aea26af89f021b",
        "needApprove": true,
        "transactions": [
          {
            "to": "0x94b008aA00579c1307B0EF2c499aD98a8ce58e58",
            "data": "0x095ea7b30000000000000000000000004bbca1e55e99ff75a5f35152bafe110f15123ea30000000000000000000000000000000000000000000000000000000000989680"
          },
          {
            "to": "0x4bBcA1e55E99fF75a5F35152BAFE110F15123EA3",
            "data": "0x4f2ecca60000000000000000000000000000000000000000000000000000000000000040000000000000000000000000000000000000000000000000000000000000026000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000008000026600000000000000000000000000000000000000000000000000000000800002ca0000000000000000000000002fb4d46372ea1748ec3c29bd2c7b536019df52000000000000000000000000002fb4d46372ea1748ec3c29bd2c7b536019df520000000000000000000000000094b008aa00579c1307b0ef2c499ad98a8ce58e58000000000000000000000000000000000000000000000000000000000098968000000000000000000000000055d398326f99059ff775485246999027b31979550000000000000000000000000000000000000000000000006f05b59d3b20000000000000000000000000000025309635fd36cf2a85712b5be4f38fa887e002cc0000000000000000000000000000000000000000000000000000000068b95ce200000000000000000000000000000000000000000000000000000000000001a00000000000000000000000000000000000000000000000000000000000000060000000000000000000000000000000000000000000000041726965735f303537000000000000000000000000000000000000000000000000000000000000017300000000000000000000000000000000000000000000000088009813ced4000000000000000000000000000000000000000000000000000000000000000000414da7b7e862169d100739dd047732b4c8f83cc9aabe0981e77ab38d6c4c6da80f2cb895262fd04f77471659174990f3ccbc05bffbd74887a029c1aea26af89f021b00000000000000000000000000000000000000000000000000000000000000",
            "value": "64000000000000"
          }
        ]
      }
    }
  }
}

3) Example Request: (WorkMode 3) #1 Cross Swap to Wanchain

POST https://xflows.wanchain.org/api/v3/quote
BODY
{
  "fromChainId": 43114,
  "toChainId": 888,
  "fromTokenAddress": "0x9702230a8ea53601f5cd2dc00fdbc13d4df4a8c7",
  "toTokenAddress": "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "slippage": 0.001
}

Example Request: (WorkMode 3) #1 Cross Swap to Wanchain

{
  "success": true,
  "data": {
    "amountOut": 990.745427,
    "amountOutRaw": "990745427",
    "slippage": 0.001,
    "amountOutMin": 989.754681573,
    "amountOutMinRaw": "989754682",
    "priceImpact": -0.6572,
    "approvalAddress": "0xAeCbF30602caF42467e7120C04271EDcC843f3c7",
    "workMode": 3,
    "bridge": "wanbridge",
    "dex": "wanchain",
    "nativeFees": [],
    "tokenFees": [],
    "extraData": {
      "dex": {
        "path": [
          [
            "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
            "0xdabD997aE5E4799BE47d6E69D9431615CBa28f48",
            "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b"
          ],
          [
            500,
            500
          ]
        ],
        "amountOut": "990745427",
        "priceImpact": 0.6572,
        "mode": "CrossSwapToWan",
        "params": {
          "fromChain": "0x80002328",
          "toChain": "0x8057414e",
          "fromToken": "0x9702230A8Ea53601f5cD2dc00fDBc13d4dF4A8c7",
          "refundAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "fromAmount": "1000000000",
          "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "amountOutMin": "989754682",
          "wrappedFromToken": "0x11e77e27af5539872efed10abaa0b408cfd9fbbd",
          "wrappedToToken": "0x52a9cea01c4cbdd669883e41758b8eb8e8e2b34b",
          "smgID": "0x000000000000000000000000000000000000000000000041726965735f303537",
          "tokenPairID0": "233",
          "networkFee0": "0",
          "serviceFee0": "0",
          "crossType0": 0,
          "tokenPairID1": "80",
          "crossType1": 1,
          "messageFee": "13460135000000",
          "gasStation": 0,
          "swapFee0": 500,
          "swapFee1": 500
        },
        "fees": {
          "networkFee": "0",
          "serviceFee": "0",
          "discount": "1000000000000000000"
        }
      }
    }
  }
}

4) Example Request: (WorkMode 4)

POST https://xflows.wanchain.org/api/v3/quote
BODY
{
  "fromChainId": 43114,
  "toChainId": 10,
  "fromTokenAddress": "0x9702230a8ea53601f5cd2dc00fdbc13d4df4a8c7",
  "toTokenAddress": "0x0b2c639c533813f4aa9d7837caf62653d097ff85",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "slippage": 0.001
}

Example Request: (WorkMode 4)

{
  "success": true,
  "data": {
    "amountOut": 986.728488,
    "amountOutRaw": "986728488",
    "slippage": 0.001,
    "amountOutMin": 985.7417595119999,
    "amountOutMinRaw": "985741760",
    "priceImpact": -0.6593,
    "approvalAddress": "0xAeCbF30602caF42467e7120C04271EDcC843f3c7",
    "workMode": 4,
    "bridge": "wanbridge",
    "dex": "wanchain",
    "nativeFees": [
      {
        "nativeFeeAmount": "13460135000000",
        "nativeFeeSymbol": "AVAX",
        "nativeFeeDecimals": 18
      },
      {
        "nativeFeeAmount": "290000000000000000",
        "nativeFeeSymbol": "WAN",
        "nativeFeeDecimals": 18
      }
    ],
    "tokenFees": [
      {
        "tokenFeeAmount": "3962765",
        "tokenFeeSymbol": "USDC",
        "tokenFeeDecimals": "6",
        "tokenFeeContract": "0x0b2c639c533813f4aa9d7837caf62653d097ff85"
      }
    ],
    "extraData": {
      "dex": {
        "path": [
          [
            "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
            "0xdabD997aE5E4799BE47d6E69D9431615CBa28f48",
            "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b"
          ],
          [
            500,
            500
          ]
        ],
        "amountOut": "990691253",
        "priceImpact": 0.6593,
        "mode": "CrossSwap",
        "params": {
          "fromChain": "0x80002328",
          "toChain": "0x80000266",
          "fromToken": "0x9702230A8Ea53601f5cD2dc00fDBc13d4dF4A8c7",
          "refundAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "fromAmount": "1000000000",
          "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "amountOutMin": "985741760",
          "wrappedFromToken": "0x11e77e27af5539872efed10abaa0b408cfd9fbbd",
          "wrappedToToken": "0x52a9cea01c4cbdd669883e41758b8eb8e8e2b34b",
          "smgID": "0x000000000000000000000000000000000000000000000041726965735f303537",
          "tokenPairID0": "233",
          "networkFee0": "0",
          "serviceFee0": "0",
          "crossType0": 0,
          "tokenPairID1": "557",
          "crossType1": 1,
          "messageFee": "13460135000000",
          "gasStation": 0,
          "swapFee0": 500,
          "swapFee1": 500
        },
        "fees": {
          "networkFee0": "0",
          "networkFee1": "290000000000000000",
          "serviceFee0": "0",
          "serviceFee1": "3962765",
          "discount": "1000000000000000000"
        }
      }
    }
  }
}

5) Example Request: (WorkMode 5) #1 on Wanchain

POST https://xflows.wanchain.org/api/v3/quote
BODY
{
  "fromChainId": 888,
  "toChainId": 888,
  "fromTokenAddress": "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
  "toTokenAddress": "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "slippage": 0.02
}

Example Response: (WorkMode 5) #1 on Wanchain

{
  "success": true,
  "data": {
    "amountOut": "991.933388",
    "amountOutRaw": "991933388",
    "slippage": 0.02,
    "amountOutMin": "972.09472",
    "amountOutMinRaw": "972094720",
    "priceImpact": -0.6476,
    "approvalAddress": "0xBc2e48073CE79553C4C8125878EeB7f8845975aa",
    "workMode": 5,
    "dex": "wanchain",
    "nativeFees": [],
    "tokenFees": [],
    "extraData": {
      "dex": {
        "path": [
          [
            "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
            "0xdabD997aE5E4799BE47d6E69D9431615CBa28f48",
            "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b"
          ],
          [
            500,
            500
          ]
        ],
        "amountOut": "991933388",
        "priceImpact": 0.6476
      }
    }
  }
}

Example Request: (WorkMode 5) #2 on other EVM chains by Rubic

POST https://xflows.wanchain.org/api/v3/quote
BODY
{
  "fromChainId": 43114,
  "toChainId": 43114,
  "fromTokenAddress": "0x9702230a8ea53601f5cd2dc00fdbc13d4df4a8c7",
  "toTokenAddress": "0xB97EF9Ef8734C71904D8002F8b6Bc66Dd9c48a6E",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "slippage": 0.001
}

Example Response: (WorkMode 5) #2

{
  "success": true,
  "data": {
    "amountOut": "999.642648",
    "amountOutRaw": "999642648",
    "slippage": 0.001,
    "amountOutMin": "998.643005",
    "amountOutMinRaw": "998643005",
    "priceImpact": -0.05,
    "approvalAddress": "0x3335733c454805df6a77f825f266e136FB4a3333",
    "workMode": 5,
    "dex": "rubic",
    "rubicId": "e63e6368-db2e-473e-ab33-1182d27d35d8",
    "nativeFees": [],
    "tokenFees": [],
    "extraData": {
      "dex": {
        "estimate": {
          "destinationTokenAmount": "999.642648",
          "destinationTokenMinAmount": "998.643005",
          "destinationUsdAmount": 999.49,
          "destinationUsdMinAmount": 998.5,
          "destinationWeiAmount": "999642648",
          "destinationWeiMinAmount": "998643005",
          "durationInMinutes": 5,
          "priceImpact": null,
          "slippage": 0.001
        },
        "fees": {
          "gasTokenFees": {
            "gas": {
              "baseFee": "809959425",
              "gasLimit": "1658354",
              "gasPrice": null,
              "maxFeePerGas": "1788282159",
              "maxPriorityFeePerGas": "168363309",
              "totalUsdAmount": 0.08,
              "totalWeiAmount": "2965605586819150"
            },
            "nativeToken": {
              "address": "0x0000000000000000000000000000000000000000",
              "blockchain": "AVALANCHE",
              "blockchainId": 43114,
              "decimals": 18,
              "name": "AVAX",
              "price": 24.11,
              "symbol": "AVAX"
            },
            "protocol": {
              "fixedAmount": "0",
              "fixedUsdAmount": 0,
              "fixedWeiAmount": "0"
            },
            "provider": {
              "fixedAmount": "0",
              "fixedUsdAmount": 0,
              "fixedWeiAmount": "0"
            }
          },
          "percentFees": {
            "percent": 0.05,
            "token": {
              "address": "0x9702230A8Ea53601f5cD2dc00fDBc13d4dF4A8c7",
              "blockchain": "AVALANCHE",
              "blockchainId": 43114,
              "decimals": 6,
              "name": "TetherToken",
              "price": 1,
              "symbol": "USDt"
            }
          }
        },
        "providerType": "ONE_INCH",
        "routing": [
          {
            "path": [
              {
                "address": "0x9702230A8Ea53601f5cD2dc00fDBc13d4dF4A8c7",
                "amount": "999.5",
                "blockchain": "AVALANCHE",
                "blockchainId": 43114,
                "decimals": 6,
                "name": "TetherToken",
                "symbol": "USDt",
                "price": 1
              },
              {
                "address": "0xB97EF9Ef8734C71904D8002F8b6Bc66Dd9c48a6E",
                "amount": "999.642648",
                "blockchain": "AVALANCHE",
                "blockchainId": 43114,
                "decimals": 6,
                "name": "USD Coin",
                "symbol": "USDC",
                "price": 1
              }
            ],
            "provider": "ONE_INCH",
            "type": "on-chain"
          }
        ],
        "swapType": "on-chain",
        "tokens": {
          "from": {
            "address": "0x9702230A8Ea53601f5cD2dc00fDBc13d4dF4A8c7",
            "amount": "999.5",
            "blockchain": "AVALANCHE",
            "blockchainId": 43114,
            "decimals": 6,
            "name": "TetherToken",
            "price": 1,
            "symbol": "USDt"
          },
          "to": {
            "address": "0xB97EF9Ef8734C71904D8002F8b6Bc66Dd9c48a6E",
            "blockchain": "AVALANCHE",
            "blockchainId": 43114,
            "decimals": 6,
            "name": "USD Coin",
            "price": 1,
            "symbol": "USDC"
          }
        },
        "transaction": {
          "approvalAddress": "0x3335733c454805df6a77f825f266e136FB4a3333"
        },
        "useRubicContract": true,
        "warnings": [],
        "id": "e63e6368-db2e-473e-ab33-1182d27d35d8",
        "requestParams": {
          "dstTokenAddress": "0xB97EF9Ef8734C71904D8002F8b6Bc66Dd9c48a6E",
          "dstTokenBlockchain": "AVALANCHE",
          "referrer": "xflows.wanchain.org",
          "srcTokenAddress": "0x9702230A8Ea53601f5cD2dc00fDBc13d4dF4A8c7",
          "srcTokenAmount": "1000",
          "srcTokenBlockchain": "AVALANCHE",
          "nativeBlacklist": [
            "lifi",
            "symbiosis",
            "xy",
            "squidrouter",
            "celer_bridge",
            "rango",
            "dln",
            "bridgers",
            "changenow",
            "orbiter_bridge",
            "meson",
            "owl_to_bridge",
            "arbitrum",
            "stargate_v2",
            "archon_bridge",
            "pulsechain_bridge",
            "router",
            "across",
            "retro_bridge",
            "unizen",
            "simple_swap",
            "changelly",
            "tele_swap",
            "xflows",
            "relay",
            "orbiter_bridge_v2",
            "wormhole",
            "exolix"
          ],
          "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "slippage": 0.001,
          "receiver": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "integratorAddress": "0x82bf94d159b15a587c45c9d70e0fab7fd87889eb"
        }
      }
    }
  }
}

6) Example Request: (WorkMode 6)

POST https://xflows.wanchain.org/api/v3/quote
BODY
{
  "fromChainId": 888,
  "toChainId": 10,
  "fromTokenAddress": "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
  "toTokenAddress": "0x0b2c639c533813f4aa9d7837caf62653d097ff85",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "slippage": 0.001
}

Example Response: (WorkMode 6)

{
  "success": true,
  "data": {
    "amountOut": "986.736558",
    "amountOutRaw": "986736558",
    "slippage": 0.001,
    "amountOutMin": 985.749821442,
    "amountOutMinRaw": "985749821",
    "priceImpact": -0.6518,
    "approvalAddress": "0x2d0217c700843Ba0CA44998d8C70e16b2a03B28f",
    "workMode": 6,
    "bridge": "wanbridge",
    "dex": "wanchain",
    "nativeFees": [],
    "tokenFees": [],
    "extraData": {
      "dex": {
        "path": [
          [
            "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
            "0xdabD997aE5E4799BE47d6E69D9431615CBa28f48",
            "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b"
          ],
          [
            500,
            500
          ]
        ],
        "amountOut": "990699355",
        "priceImpact": 0.6518,
        "mode": "CrossSwapFromWan",
        "params": {
          "fromChain": "0x8057414e",
          "toChain": "0x80000266",
          "fromToken": "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
          "refundAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "fromAmount": "1000000000",
          "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
          "amountOutMin": "985749821",
          "wrappedFromToken": "0x11e77e27af5539872efed10abaa0b408cfd9fbbd",
          "wrappedToToken": "0x52a9cea01c4cbdd669883e41758b8eb8e8e2b34b",
          "smgID": "0x000000000000000000000000000000000000000000000041726965735f303537",
          "tokenPairID0": "81",
          "networkFee0": 0,
          "serviceFee0": 0,
          "crossType0": 0,
          "tokenPairID1": "557",
          "crossType1": 1,
          "messageFee": 0,
          "gasStation": 0,
          "swapFee0": 500,
          "swapFee1": 500
        },
        "fees": {
          "networkFee": "290000000000000000",
          "serviceFee": "3962797",
          "discount": "1000000000000000000"
        }
      }
    }
  }
}

5. Creating Transactions

Create a cross-chain Swap transaction in the specified direction for the user's wallet signature and cross-chain completion. For EVM chain approve transaction, we need to check the allowance and create ERC20 approve transaction data by ourselves. This API only builds cross-chain Swap transaction, before execution, please make sure you have done approve operation and the allowance value is enough.

The request parameters are exactly the same as the api/v3/quote interface, so you can reuse the request data directly.

5.1 Interface Description

Request address

POST https://xflows.wanchain.org/api/v3/buildTx

Request Parameters

Parameters
Type
Required
Description of the request

id

String

No

Random number to be returned with the return value to identify the order of the request.

fromChainId

Number

Yes

ID of the source chain (e.g. 1: Ethereum, more can be retrieved using the API).

toChainId

Number

Yes

Destination Chain ID (e.g. 56: BNB Smart Chain, more can be obtained using API)

fromTokenAddress

String

Yes

The address of the requesting currency contract (e.g. 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2 )

toTokenAddress

String

Yes

Target currency contract address (e.g. 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2 )

fromAddress

String

Yes

Source chain wallet address

toAddress

String

Yes

Destination chain wallet address

fromAmount

String

Yes

fromAmount, e.g., "123.45"

bridge

String

No

Optional, specify a bridge to be used, e.g. "wanbridge" or "quix", default is wanbridge if not filled.

dex

String

No

Optional, specify a DEX to be used, e.g. "wanchain" or "rubic".

slippage

Number

No

Optional, the maximum slippage allowed, default value is 0.01 (represents 1%)

partner

String

No

Optional, the label of the partner.

Response Parameters

Parameters
type
Required
Descripción

id

String

No

Random number, same as input, to identify the order of requests.

chainId

chainId

Yes

The chainId of the sending transaction

tx

{}

Yes

Constructed transaction data

- value

String

No

- to

String

No

- data

String

No

- approvalAddress

String

No

- memo

String

No

- serializedTx

String

No

- abi / params / functionSelector / params

{}

No

5.2 Request Examples

1) Example Request: (from EVM chains)

POST https://xflows.wanchain.org/api/v3/buildTx
BODY
{
  "fromChainId": 43114,
  "toChainId": 888,
  "fromTokenAddress": "0x9702230a8ea53601f5cd2dc00fdbc13d4df4a8c7",
  "toTokenAddress": "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "slippage": 0.001
}

Example Response: (from EVM chains)

{
  "success": true,
  "data": {
    "chainId": 43114,
    "tx": {
      "value": "13460135000000",
      "to": "0xAeCbF30602caF42467e7120C04271EDcC843f3c7",
      "data": "0x4bcb403a00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000080002328000000000000000000000000000000000000000000000000000000008057414e0000000000000000000000009702230a8ea53601f5cd2dc00fdbc13d4df4a8c70000000000000000000000002fb4d46372ea1748ec3c29bd2c7b536019df5200000000000000000000000000000000000000000000000000000000003b9aca000000000000000000000000000000000000000000000000000000000000000280000000000000000000000000000000000000000000000000000000003b1a88ff00000000000000000000000011e77e27af5539872efed10abaa0b408cfd9fbbd00000000000000000000000052a9cea01c4cbdd669883e41758b8eb8e8e2b34b000000000000000000000000000000000000000000000041726965735f30353700000000000000000000000000000000000000000000000000000000000000e90000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000050000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000c3dee90b7c0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001f400000000000000000000000000000000000000000000000000000000000001f400000000000000000000000000000000000000000000000000000000000000142fb4d46372ea1748ec3c29bd2c7b536019df5200000000000000000000000000"
    }
  }
}

2) Example Request: (from Bitcoin)

POST https://xflows.wanchain.org/api/v3/buildTx
BODY
{
  "fromChainId": 2147483648,
  "toChainId": 888,
  "fromTokenAddress": "0x0000000000000000000000000000000000000000",
  "toTokenAddress": "0x50c439b6d602297252505a6799d84ea5928bcfb6",
  "fromAddress": "bc1qugvdunxxzqvy80hysz9y77nx50240n7ghhz3rd",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "0.002",
  "partner": "xflows"
}

Example Response: (from EVM chains)

{
  "success": true,
  "data": {
    "tx": {
      "to": "bc1p64ekpgpmfzu7qag4eze8h775hwgc5fzzvt2g6w2wv4rdmmgk44dqny9plg",
      "value": 200000,
      "memo": "07000f000078666c6f77732fb4d46372ea1748ec3c29bd2c7b536019df5200"
    }
  }
}

3) Example Request: (from Cardano)

POST https://xflows.wanchain.org/api/v3/buildTx
BODY
{
  "fromChainId": 2147485463,
  "toChainId": 42161,
  "fromTokenAddress": "0x32356335646535663562323836303733633539336564666437376234386162633761343865356134663364346364396434323866663933352e3535353334343534",
  "toTokenAddress": "0xfd086bc7cd5c481dcc9c85ebe478a1c0b69fcbb9",
  "fromAddress": "addr1q80p2p4a08kmd4fn5p6er8unu25n6302x3wrzajnl46as0nx3yflzt76nqydq2x6603wt96cvtuuj7ealj6j5r7qepmskkhetk",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "5",
  "partner": "xflows"
}

Example Response.

{
  "success": true,
  "data": {
    "tx": {
      "serializedTx": "84ab00828258204bdf1401cf3ce3279ee243a042c9d03601254674b6f3013f1b4c7bcb2d80b24a008258204dc625598a7f98a1911edfdf30c5a11f71cd4d966747c0ed170bf225227251e2000182825839010c05ca78b1d2f4104486ace091ada7c789733a5a0e9567e0bc3544a49e58f02147d458cce4a31e132cc30cd81d43f11d73033401e7dcf2941a001e848082583901de1506bd79edb6d533a075919f93e2a93d45ea345c317653fd75d83e668913f12fda9808d028dad3e2e5975862f9c97b3dfcb52a0fc0c877821a007a45c5a1581c25c5de5f5b286073c593edfd77b48abc7a48e5a4f3d4cd9d428ff935a244555344431a04c4b40044555344541a1c9c3800021a00054c8c031a09dc286a07582060bb27af0ed7ba5c7f715e876007127afad9c28965d0199d7b92768ebf389fd109a1581c25c5de5f5b286073c593edfd77b48abc7a48e5a4f3d4cd9d428ff935a144555344543a1dcd64ff0b5820d58636216b8b0d5b03f816c97dfd289631bee10a965ddff42806db51e2bdfff90d828258204bdf1401cf3ce3279ee243a042c9d03601254674b6f3013f1b4c7bcb2d80b24a008258204dc625598a7f98a1911edfdf30c5a11f71cd4d966747c0ed170bf225227251e2001082583901de1506bd79edb6d533a075919f93e2a93d45ea345c317653fd75d83e668913f12fda9808d028dad3e2e5975862f9c97b3dfcb52a0fc0c877821a0093e9a9a1581c25c5de5f5b286073c593edfd77b48abc7a48e5a4f3d4cd9d428ff935a244555344431a04c4b40044555344541a3a699d00111a000a2d281281825820fffb1b66bd78837ea0136587c354ee6a0991b6d0a2954e48d46a476b3ce683df00a10581840100d87980821a001626e41a12bca33cf5a101a66b66726f6d4163636f756e748278406164647231713830703270346130386b6d6434666e357036657238756e7532356e36333032783377727a616a6e6c34366173306e783379666c7a7437366e7179782764713278363630337774393663767475756a3765616c6a366a3572377165706d736b6b6865746b67706172746e65726678666c6f777365736d6749445820000000000000000000000000000000000000000000000041726965735f30353769746f4163636f756e74542fb4d46372ea1748ec3c29bd2c7b536019df52006b746f6b656e5061697249441901f1647479706508"
    }
  }
}

4) Example Request: (from Solana)

POST https://xflows.wanchain.org/api/v3/buildTx
BODY
{
  "fromChainId": 501,
  "toChainId": 888,
  "fromTokenAddress": "0x45506a465764643541756671535371654d32714e31787a7962617043384734774547476b5a77795444743176",
  "toTokenAddress": "0x52a9cea01c4cbdd669883e41758b8eb8e8e2b34b",
  "fromAddress": "2SFMj2XNzFCTzeQE8rEk82MxBq3A4u4J6uQvEnpmcqyh",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "5",
  "partner": "xflows"
}

Example Response: (from Solana)

{
  "success": true,
  "data": {
    "tx": {
      "serializedTx": "AQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABAAkQFVNw5ypthVgz8lFRPNfRPMe/ufQ6BixH/73YR4GegvAhp6wFY40Ym+DdCl+oPDp4Vnoe257XWFLaQOYgcHCjyTzNc87IXADsuI2Qy8ak0jE9M0IRAhqD5DGJjETI9jAkRVafPC5c97vWwprgSq0wN+0wjwtmsREyFIRIifa2M6mKeERWu6W9qbwhs6Lj4UyvyY5gpgI2wMnkW2WMJTeyAateyLLYnsVsZR+X9XlGkyFBcMkY6NiYMvziKxqjgpG7xvp6877brTo9ZfNqq8l0MbG75MLS9uDkfKYCA0UvXWEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACSwg0+FVMmk6FXkLPjnIEQ+TzLKfJflaFCjyd8PEuNaZAvJ3zPF3TuKHxCJuoD0D12vyiNb33Pn7X9aQQr1uVh3YW5fcGFydG5lcjp4Zmxvd3MAAAAAAAAAAAAAAAAAAIKuHjxKyDYGsUdRHhJStJ+ig4GshjU9tRes6hpJ9C5mjJclj04kifG7PRApFI4NgwtaE5na/xCEBI572Nvp+FkDBkZv5SEXMv/srbpyw5vnvIzlu8X3EmssQ5s6QAAAAMHZ0b/TXl3f9PqMZ5KMpkjVm5YHFgVTF3+dEkEumuJMBt324ddloZPZy+FGzut5rBy0he1fWzeROoz1hX7/AKlWl3S6oS4QNSl1zKlvSB9sLUm16WT9HCJwqj8pZwtgvQIODgAEAgEGBQkLAwgPDAcKYkIR1n7rhVJyAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABBcmllc18wNTc9AwAAQEtMAAAAAAAqAAAAMHgyZmI0RDQ2MzcyRWExNzQ4ZWMzYzI5QmQyQzdCNTM2MDE5REY1MjAwDQAFAkBCDwA="
    }
  }
}

5) Example Request: (from SUI)

POST https://xflows.wanchain.org/api/v3/buildTx
BODY
{
  "fromChainId": 2147484432,
  "toChainId": 8453,
  "fromTokenAddress": "0x3078646261333436373265333063623036356231663933653361623535333138373638666436666566363663313539343263396637636238343665326639303065373a3a757364633a3a55534443",
  "toTokenAddress": "0x833589fcd6edb6e08f4c7c32d4f71b54bda02913",
  "fromAddress": "0x09212c719c1c62cd75a33a1cd70f34468b6096a26179f9e943621953168adbfc",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "5",
  "partner": "xflows"
}

Example Response.

{
  "success": true,
  "data": {
    "tx": {
      "serializedTx": "{\n  \"version\": 2,\n  \"sender\": null,\n  \"expiration\": null,\n  \"gasData\": {\n    \"budget\": null,\n    \"price\": null,\n    \"owner\": null,\n    \"payment\": [\n      {\n        \"objectId\": \"0xfab1f6005a5746ab02d882a0a63bc5ac740f80c2d28157ba20a238dffd3b0372\",\n        \"version\": \"590132835\",\n        \"digest\": \"9DEQ7Y4DvypHFMBrjTWpVciRSx5RzyvmFdwnNAvPcAVP\"\n      }\n    ]\n  },\n  \"inputs\": [\n    {\n      \"Pure\": {\n        \"bytes\": \"AGOfAgAAAAA=\"\n      }\n    },\n    {\n      \"UnresolvedObject\": {\n        \"objectId\": \"0x29a4f741448020f36301feffefbee6d4367d25f054147960a0713a3002e9d1f1\"\n      }\n    },\n    {\n      \"Pure\": {\n        \"bytes\": \"QEtMAAAAAAA=\"\n      }\n    },\n    {\n      \"UnresolvedObject\": {\n        \"objectId\": \"0x1706cef6192f49db4d5650eb93a912ae81694d0f8b90f591e6f489959829b987\"\n      }\n    },\n    {\n      \"UnresolvedObject\": {\n        \"objectId\": \"0xc22e2bf69d38889a92559f45fd8769838d98dfc85f9e42925c0cb34bd7da06c7\"\n      }\n    },\n    {\n      \"UnresolvedObject\": {\n        \"objectId\": \"0x8a47c0bcca85466f679a0f5b1e1e1ca0bed02a1ea33dad829fa22e8bfa97bf54\"\n      }\n    },\n    {\n      \"UnresolvedObject\": {\n        \"objectId\": \"0xfd6f639b37679637d77389038bcfad8e7a128122c18a9b0706d101670af21505\"\n      }\n    },\n    {\n      \"UnresolvedObject\": {\n        \"objectId\": \"0xbb93514a7e8774a4f9aca575793f766e3a21d0a936785129be4f99c0263e1d0f\"\n      }\n    },\n    {\n      \"UnresolvedObject\": {\n        \"objectId\": \"0x30e1529ff5b1bcaac4dcdc9095ea5a3562c6a26607e6b26b0dfd296ed230c2d1\"\n      }\n    },\n    {\n      \"UnresolvedObject\": {\n        \"objectId\": \"0x0000000000000000000000000000000000000000000000000000000000000006\"\n      }\n    },\n    {\n      \"Pure\": {\n        \"bytes\": \"IAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAQXJpZXNfMDU3\"\n      }\n    },\n    {\n      \"Pure\": {\n        \"bytes\": \"+AMAAAAAAAA=\"\n      }\n    },\n    {\n      \"Pure\": {\n        \"bytes\": \"KjB4MmZiNEQ0NjM3MkVhMTc0OGVjM2MyOUJkMkM3QjUzNjAxOURGNTIwMA==\"\n      }\n    },\n    {\n      \"Pure\": {\n        \"bytes\": \"BnhmbG93cw==\"\n      }\n    },\n    {\n      \"Pure\": {\n        \"bytes\": \"CSEscZwcYs11ozoc1w80RotglqJhefnpQ2IZUxaK2/w=\"\n      }\n    }\n  ],\n  \"commands\": [\n    {\n      \"SplitCoins\": {\n        \"coin\": {\n          \"GasCoin\": true\n        },\n        \"amounts\": [\n          {\n            \"Input\": 0\n          }\n        ]\n      }\n    },\n    {\n      \"SplitCoins\": {\n        \"coin\": {\n          \"Input\": 1\n        },\n        \"amounts\": [\n          {\n            \"Input\": 2\n          }\n        ]\n      }\n    },\n    {\n      \"MoveCall\": {\n        \"package\": \"0x1c8b984b5d896a916b356171ee7c48eb5b62d8685ffe8da6f5ac30cc1def8c6a\",\n        \"module\": \"cross\",\n        \"function\": \"user_lock\",\n        \"typeArguments\": [\n          \"0xdba34672e30cb065b1f93e3ab55318768fd6fef66c15942c9f7cb846e2f900e7::usdc::USDC\"\n        ],\n        \"arguments\": [\n          {\n            \"Input\": 3\n          },\n          {\n            \"Input\": 4\n          },\n          {\n            \"Input\": 5\n          },\n          {\n            \"Input\": 6\n          },\n          {\n            \"Input\": 7\n          },\n          {\n            \"Input\": 8\n          },\n          {\n            \"Input\": 9\n          },\n          {\n            \"Input\": 10\n          },\n          {\n            \"Input\": 11\n          },\n          {\n            \"Input\": 12\n          },\n          {\n            \"NestedResult\": [\n              1,\n              0\n            ]\n          },\n          {\n            \"NestedResult\": [\n              0,\n              0\n            ]\n          },\n          {\n            \"Input\": 13\n          }\n        ]\n      }\n    },\n    {\n      \"TransferObjects\": {\n        \"objects\": [\n          {\n            \"NestedResult\": [\n              0,\n              0\n            ]\n          }\n        ],\n        \"address\": {\n          \"Input\": 14\n        }\n      }\n    }\n  ]\n}"
    }
  }
}

6) Example Request: (from Tron)

POST https://xflows.wanchain.org/api/v3/buildTx
BODY
{
  "fromChainId": 195,
  "toChainId": 1,
  "fromTokenAddress": "0xa614f803b6fd780986a42c78ec9c7f77e6ded13c",
  "toTokenAddress": "0xdac17f958d2ee523a2206206994597c13d831ec7",
  "fromAddress": "TEKTPLcABzoq8nthP6yV55kE94irztW2dW",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "5",
  "partner": "xflows"
}

Example Response: (from Tron) Example Response: (from Tron)

{
  "success": true,
  "data": {
    "tx": {
      "to": "41fe464ebd5bb5d95731f90aa7b9e39df920a61c97",
      "abi": [
        {
          "inputs": [
            {
              "internalType": "bytes32",
              "name": "smgID",
              "type": "bytes32"
            },
            {
              "internalType": "uint256",
              "name": "tokenPairID",
              "type": "uint256"
            },
            {
              "internalType": "uint256",
              "name": "value",
              "type": "uint256"
            },
            {
              "internalType": "bytes",
              "name": "userAccount",
              "type": "bytes"
            }
          ],
          "name": "userLock",
          "outputs": [],
          "stateMutability": "payable",
          "type": "function"
        }
      ],
      "functionSelector": "userLock(bytes32,uint256,uint256,bytes)",
      "rawParameter": "0x000000000000000000000000000000000000000000000041726965735f303537000000000000000000000000000000000000000000000000000000000000011100000000000000000000000000000000000000000000000000000000004c4b40000000000000000000000000000000000000000000000000000000000000008000000000000000000000000000000000000000000000000000000000000000142fb4d46372ea1748ec3c29bd2c7b536019df5200000000000000000000000000",
      "params": [
        "0x000000000000000000000000000000000000000000000041726965735f303537",
        "273",
        "5000000",
        "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200"
      ],
      "value": "0x4a62f80"
    }
  }
}

6. Status Query

Get the status of XFlows transaction execution.

6.1 Interface Description

The input parameters of the interface are the same as those of the quote interface, except that the slippage is replaced by a hash value, which refers to the hash of the transaction sent by the source chain.

Request address

POST https://xflows.wanchain.org/api/v3/status

Request Parameters

Parameters
Type
Mandatory
Description of the request

id

String

No

Random number to be returned with the return value to identify the order of the request.

fromChainId

Number

Yes

ID of the source chain (e.g. 1: Ethereum, more can be retrieved using the API).

toChainId

Number

Yes

Destination Chain ID (e.g. 56: BNB Smart Chain, more can be obtained using API)

fromTokenAddress

String

Yes

The address of the requesting currency contract (e.g. 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2 )

toTokenAddress

String

Yes

Target currency contract address (e.g. 0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2 )

fromAddress

String

Yes

Source chain wallet address

toAddress

String

Yes

Destination chain wallet address

fromAmount

String

Yes

fromAmount, e.g., "123.45"

bridge

String

No

Optional, specify a bridge to use, e.g. "wanbridge" or "quix".

dex

String

No

Optional, specify a DEX to be used, e.g. "wanchain" or "rubic".

hash

Number

Yes

The transaction hash of the source chain.

Response Parameters

Parameters
type
Required
Description

id

String

No

Random number, same as input, used to identify the order of request.

statusCode

Number

Yes

Current status code of the transaction:

  • 1: Success

  • 2: Failed

  • 3: Processing

  • 4/5: Refunded

  • 6: Trusteeship

  • 7: Risk transaction

Among them, the Trusteeship status indicates that there may be issues with the 'to' address filled in by the user, and the cross-chain process enters a manual intervention process. Users need to contact [email protected] for manual processing. Refunded status indicates that the transaction has been refunded, possibly due to slippage not being met, causing intermediate process failure and triggering a refund. There are two types of refund situations: 4 represents refund to the source chain, and 5 represents refund to the user's address on Wanchain. Risk transaction indicates that the user's address has AML risk, the transaction cannot continue, and has been refunded. | | statusMsg | String | Yes | Status message: Success, Processing, Failed, Refunded, Risk transaction | | receiveAmount | String | No | The number of toTokens actually received. For example, "122.45". (This value is not returned when the toToken is a native coin) | | receiveAmountRaw | String | No | The number of toTokens actually received. Amount should include precision, e.g. 0.001 DAI return: "1000000000000000". (This value is not returned when the toToken is a native coin.) | | workMode | Number | Yes | Return Value: 1. directly cross-chain, go to wan-bridge; 2. directly cross-chain, go to quix; 3. cross-chain first, then do Swap in target chain (e.g. cross to Wanchain); 4. cross-chain to Wanchain first, do Swap on Wanchain, then cross-chain to target chain; 5. only Swap, e.g. on Wanchain, Swap. Swap only, e.g. Swap on Wanchain, or Swap on other chains based on Rubic (not supported by OKX or 1inch for now); 6. Swap first and then cross chain, e.g. Swap from Wanchain and cross out to other chains; (not supported by OKX or 1inch for now) | | error | String | No | If an error is returned, this field returns the error message | | sourceHash | String | No | Source chain hash | | destinationHash | String | No | destinationHash | | swapHash | String | No | Swap hash | | refundHash | String | No | Refund hash in case of a refund | | String Start time in seconds. timestamp | Number | No | Start time in seconds. | | extraData | {} | No | Other relevant auxiliary information |

5.2 Request Examples

1) Example Request: (workMode1)

POST https://xflows.wanchain.org/api/v3/status
BODY
{
  "fromChainId": 10,
  "toChainId": 42161,
  "fromTokenAddress": "0x94b008aa00579c1307b0ef2c499ad98a8ce58e58",
  "toTokenAddress": "0xfd086bc7cd5c481dcc9c85ebe478a1c0b69fcbb9",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "4.5015",
  "hash": "0x969eb35d16435b8bdd261804c74201454c7d95b348a8033b297278b55fae4590"
}

Example Response: (workMode1)

{
  "success": true,
  "data": {
    "statusCode": 1,
    "statusMsg": "Success",
    "receiveAmount": "4.3015",
    "receiveAmountRaw": "4301500",
    "workMode": 1,
    "sourceHash": "0x969eb35d16435b8bdd261804c74201454c7d95b348a8033b297278b55fae4590",
    "destinationHash": "0xc29d7f9abcff581ccd776a4ea88d4417cbe3ec7485dbcf01dd56c7f3087644e8",
    "timestamp": 1757045459,
    "extraData": {
      "timestamp": 1757045459,
      "tokenPair": "373",
      "lockHash": "0x969eb35d16435b8bdd261804c74201454c7d95b348a8033b297278b55fae4590",
      "redeemHash": "0xc29d7f9abcff581ccd776a4ea88d4417cbe3ec7485dbcf01dd56c7f3087644e8",
      "status": "Success",
      "sendAmount": "4501500",
      "receiveAmount": "4301500"
    }
  }
}

2) Example Request: (workMode2)

POST https://xflows.wanchain.org/api/v3/status
BODY
{
  "fromChainId": 56,
  "toChainId": 888,
  "fromTokenAddress": "0x8ac76a51cc950d9822d68b83fe1ad97b32cd580d",
  "toTokenAddress": "0x52a9cea01c4cbdd669883e41758b8eb8e8e2b34b",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "10",
  "bridge": "quix",
  "hash": "0x670d61f9be47ab83f359835c017468524eeeb6cc0d6a50d258a4c896727c12e7"
}

Example Response.

{
  "success": true,
  "data": {
    "statusCode": 1,
    "statusMsg": "Success",
    "receiveAmount": "3.789",
    "receiveAmountRaw": "3789000",
    "workMode": 2,
    "sourceHash": "0x670d61f9be47ab83f359835c017468524eeeb6cc0d6a50d258a4c896727c12e7",
    "destinationHash": "0xeb550bef1cb343fac5f57b06199080729d805215ce78fd98dd5d03bb96ea3ff5",
    "timestamp": 1750130177,
    "extraData": {
      "_id": "6850de01da4efa011aa928fc",
      "intentId": "0xf779a3bf64aca2bff8dd3982160ceb0548ffdc3be1093d7f9f47c1269882fd0d",
      "chain": "Wanchain",
      "chainId": 888,
      "txHash": "0xeb550bef1cb343fac5f57b06199080729d805215ce78fd98dd5d03bb96ea3ff5",
      "status": "executed",
      "claimed": true,
      "intentInfo": {
        "intentType": 0,
        "nonce": "2",
        "fromChainId": "2147484362",
        "toChainId": "2153201998",
        "from": "0x4Cf0A877E906DEaD748A41aE7DA8c220E4247D9e",
        "to": "0x4Cf0A877E906DEaD748A41aE7DA8c220E4247D9e",
        "fromToken": "0x8AC76a51cc950d9822D68b83fE1Ad97B32Cd580d",
        "fromAmount": "5789000000000000000",
        "toToken": "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b",
        "toAmount": "3789000",
        "relayer": "0x25309635Fd36CF2A85712B5be4f38Fa887e002CC",
        "deadline": "1750389342",
        "extraData": "0x000000000000000000000000000000000000000000000041726965735f30353500000000000000000000000000000000000000000000000000000000000000f60000000000000000000000000000000000000000000000000000000000585548"
      },
      "createdAt": "2025-06-17T03:16:17.262Z",
      "__v": 0,
      "claimTxHash": "0x333f0f4e8c42b84a390a0be3ab43857a81e25047113799b91ea75a0d5830685a"
    }
  }
}

3) Example Request: (workMode3)

POST https://xflows.wanchain.org/api/v3/status
BODY
{
  "fromChainId": 42161,
  "toChainId": 888,
  "fromTokenAddress": "0xfd086bc7cd5c481dcc9c85ebe478a1c0b69fcbb9",
  "toTokenAddress": "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "hash": "0x679883ca0c353a8888651dc436092fa2e61443016492607ded9d59904d75585c"
}

Example Response.

{
  "success": true,
  "data": {
    "workMode": 3,
    "statusCode": 1,
    "statusMsg": "Success",
    "receiveAmount": "3.784275",
    "receiveAmountRaw": "3784275",
    "sourceHash": "0x679883ca0c353a8888651dc436092fa2e61443016492607ded9d59904d75585c",
    "destinationHash": "0x480a4497145a0eac531f79c32308034efb27d6fdd3d8e642fe2959931b1d3ba3",
    "swapHash": "0x480a4497145a0eac531f79c32308034efb27d6fdd3d8e642fe2959931b1d3ba3",
    "extraData": {
      "_id": "68be7811660c0261a65b00f0",
      "messageId": "0x221e041d36548c1bb872dde4ae7a1ac73026c7ce982ae2be70d44e1ef70d8868",
      "lockHash": "0x679883ca0c353a8888651dc436092fa2e61443016492607ded9d59904d75585c",
      "timestamp": "2025-09-08T06:30:41.144Z",
      "status": 1,
      "details": [
        1073741826,
        2153201998,
        "0xFd086bC7CD5C481DCC9C85ebE478A1C0b69FCbb9",
        "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
        3786353,
        "0x2fb4d46372ea1748ec3c29bd2c7b536019df5200",
        3746523,
        "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
        "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b",
        "0x000000000000000000000000000000000000000000000041726965735f303537",
        186,
        0,
        0,
        0,
        80,
        1,
        111086000000,
        0,
        500,
        500
      ],
      "__v": 0,
      "processTxHash": "0x480a4497145a0eac531f79c32308034efb27d6fdd3d8e642fe2959931b1d3ba3"
    }
  }
}

4) Example Request: (workMode4)

POST https://xflows.wanchain.org/api/v3/status
BODY
{
  "fromChainId": 42161,
  "toChainId": 10,
  "fromTokenAddress": "0xaf88d065e77c8cC2239327C5EDb3A432268e5831",
  "toTokenAddress": "0x94b008aA00579c1307B0EF2c499aD98a8ce58e58",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "hash": "0x32cb5524d67fd43c4a5e1170e54319fadaef4094f13fa8e5e3ac6db5ea14cab9"
}

Example Response.

{
  "success": true,
  "data": {
    "workMode": 4,
    "sourceHash": "0x32cb5524d67fd43c4a5e1170e54319fadaef4094f13fa8e5e3ac6db5ea14cab9",
    "timestamp": 1757321487,
    "swapHash": "0x8bbea570e673f6f950c438c9d0fa9f2328c20f52e0dc5c681ff10970f264f9ed",
    "statusCode": 1,
    "statusMsg": "Success",
    "receiveAmount": "6.76251",
    "receiveAmountRaw": "6762510",
    "destinationHash": "0x5c22efce1e8d8583e2712cfa2a960227bc2be3e28bf4ba36ee5d4ca5f8b6a39f",
    "extraData": {
      "timestamp": 1757321595,
      "tokenPair": "370",
      "lockHash": "0x8bbea570e673f6f950c438c9d0fa9f2328c20f52e0dc5c681ff10970f264f9ed",
      "redeemHash": "0x5c22efce1e8d8583e2712cfa2a960227bc2be3e28bf4ba36ee5d4ca5f8b6a39f",
      "status": "Success",
      "sendAmount": "6762510",
      "receiveAmount": "6762510"
    }
  }
}

5) Example Request: (workMode5#1)

POST https://xflows.wanchain.org/api/v3/status
BODY
{
  "fromChainId": 888,
  "toChainId": 888,
  "fromTokenAddress": "0x0000000000000000000000000000000000000000",
  "toTokenAddress": "0x11e77E27Af5539872efEd10abaA0b408cfd9fBBD",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "hash": "0xbe8202b461739e91244e7b905565e83d3eb4482185472bd8a94a181fa2fb528f"
}

Example Response.

{
  "success": true,
  "data": {
    "workMode": 5,
    "swapHash": "0xbe8202b461739e91244e7b905565e83d3eb4482185472bd8a94a181fa2fb528f",
    "receiveAmount": "0.720547",
    "receiveAmountRaw": "720547",
    "statusCode": 1,
    "statusMsg": "Success",
    "extraData": {
      "dex": "wanchain"
    }
  }
}

6) Example Request: (workMode5#2)

POST https://xflows.wanchain.org/api/v3/status
BODY
{
  "fromChainId": 42161,
  "toChainId": 42161,
  "fromTokenAddress": "0x0000000000000000000000000000000000000000",
  "toTokenAddress": "0xaf88d065e77c8cC2239327C5EDb3A432268e5831",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "hash": "0x54971b0566abea9c77a4d71672287f07ec9625ba8557191690265d5fb58616d5"
}

Example Response.

{
  "success": true,
  "data": {
    "workMode": 5,
    "swapHash": "0x54971b0566abea9c77a4d71672287f07ec9625ba8557191690265d5fb58616d5",
    "receiveAmount": "4.376184",
    "receiveAmountRaw": "4376184",
    "statusCode": 1,
    "statusMsg": "Success"
  }
}

7) Example Request: (workMode6)

POST https://xflows.wanchain.org/api/v3/status
BODY
{
  "fromChainId": 888,
  "toChainId": 42161,
  "fromTokenAddress": "0x52A9CEA01c4CBDd669883e41758B8eB8e8E2B34b",
  "toTokenAddress": "0xfd086bc7cd5c481dcc9c85ebe478a1c0b69fcbb9",
  "fromAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "toAddress": "0x2fb4D46372Ea1748ec3c29Bd2C7B536019DF5200",
  "fromAmount": "1000",
  "hash": "0xf9a4cfec864570c5d831c7684e77c6bed7f00826da2c369f0ffcf9d43a0e4342"
}

Example Response.

{
  "success": true,
  "data": {
    "workMode": 6,
    "statusCode": 1,
    "statusMsg": "Success",
    "receiveAmount": "5.791341",
    "receiveAmountRaw": "5791341",
    "sourceHash": "0xf9a4cfec864570c5d831c7684e77c6bed7f00826da2c369f0ffcf9d43a0e4342",
    "destinationHash": "0x0ec4d403cf9585eb0ab70a0d689e482cdd052a1ece49bf5c36fbe6ad00f95368",
    "swapHash": "0xf9a4cfec864570c5d831c7684e77c6bed7f00826da2c369f0ffcf9d43a0e4342",
    "timestamp": 1757314260,
    "extraData": {
      "timestamp": 1757314260,
      "tokenPair": "186",
      "lockHash": "0xf9a4cfec864570c5d831c7684e77c6bed7f00826da2c369f0ffcf9d43a0e4342",
      "redeemHash": "0x0ec4d403cf9585eb0ab70a0d689e482cdd052a1ece49bf5c36fbe6ad00f95368",
      "status": "Success",
      "sendAmount": "5991341",
      "receiveAmount": "5791341"
    }
  }
}
Previous4. Status QueryNextImportant Terms and Parameter

Last updated
